Hotchkis 70-81 Camaro/Firebird Tubular Upper A-Arms - 1106

(No reviews yet) Write a Review
$1,066.99
SKU:
HOT1106
UPC:
00810361030130
Availability:
Special order
MPN:
1106
Special Order:
Y
Core Price:
0
5 customers are viewing this product

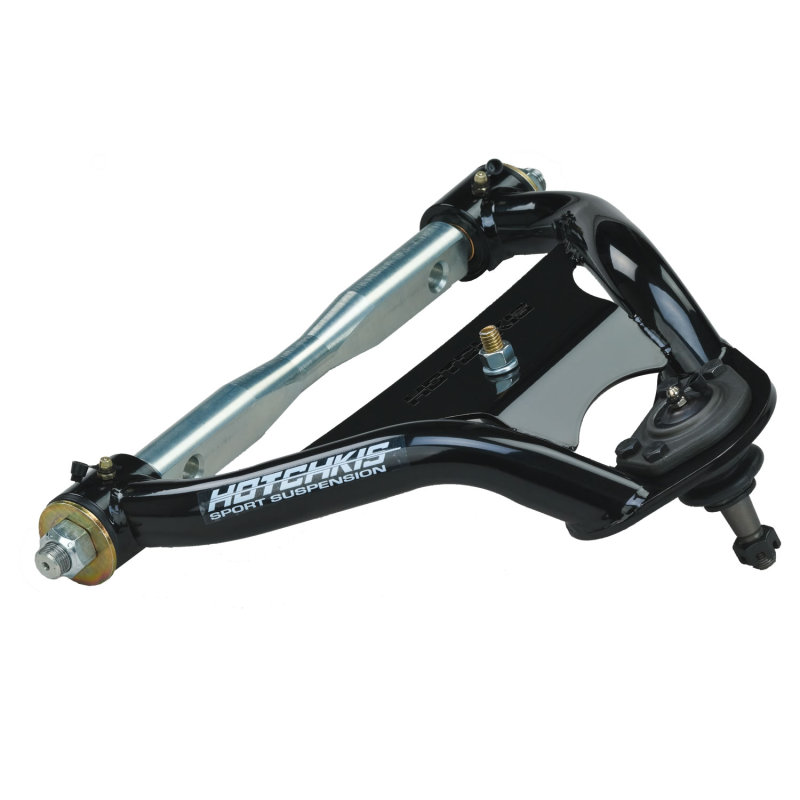

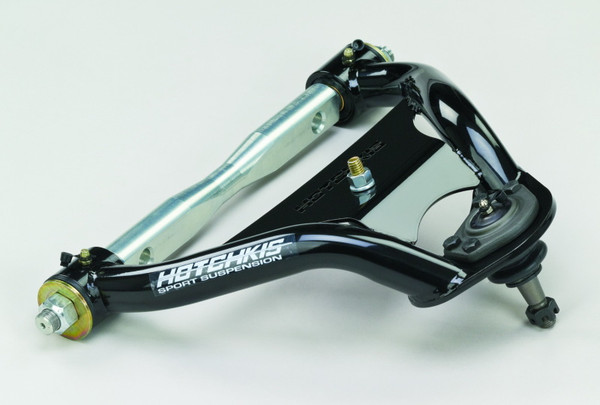

Hotchkis 70-81 Camaro/Firebird Tubular Upper A-Arms - 1106

Hotchkis 70-81 Camaro/Firebird Tubular Upper A-Arms - 1106

$1,066.99
Hotchkis Sport Suspension 1106 1970-1981 Camaro/Firebird Tubular Upper A-Arms. Install the geometry corrected Hotchkis Sport Suspension Tubular Upper A-Arms on your 70-81 Camaro or Firebird and gain vastly increased handling and control. These TIG-welded bolt-on arms offer increased camber and caster adjustment over stock for ultimate driving performance. Finished in gloss black powder coat the Arms are ready to install and are complete with ball joints offset cross-shafts and smooth operating Delrin bushings. Exceptional handling performance when combined with the Hotchkis Sport Suspension Tubular Lower A-Arms. Features: Geometry corrected design. Built in - 1.1 deg of Camber 5.2 deg of Caster 100% TIG-welded 1.25 in. tubular steel construction. Silver zinc plated 4130 Chromoly billet cross-shaft. Easy to lubricate Delrin bushings. Upper ball joints and polyurethane droop stops installed. Laser cut Hotchkis logo. Gloss black powder coat finish Benefits: Offset Cross-Shaft allows increased static negative camber without a large alignment shim stack. Great for header clearance issues. Increased Caster improves high speed stability and camber gain during turning thereby increasing front tire traction. Smooth operating Delrin bushings allow minimal deflection through travel range. Achievable specs when using 1106 upper control arm and 1108 lower control arm. MAX Caster with Uppers and Lowers = 9 deg MAX Camber with Uppers and Lowers = - 3.5 deg

This Part Fits:

YearMakeModelSubmodel
1970-1980ChevroletCamaroBase
1979-1981ChevroletCamaroBerlinetta
1973-1978ChevroletCamaroLT
1976-1978ChevroletCamaroLT Rally Sport
1976-1980ChevroletCamaroRally Sport
1970-1973,1975ChevroletCamaroRS
1981ChevroletCamaroSport
1970-1972ChevroletCamaroSS
1970-1974,1977-1981ChevroletCamaroZ28
1975-1979ChevroletNovaBase
1976-1977ChevroletNovaConcours
1975,1978-1979ChevroletNovaCustom
1975ChevroletNovaLN
1975-1978ChevroletNovaPolice
1977-1979ChevroletNovaRally
1976ChevroletNovaSS
1970-1981PontiacFirebirdBase
1970-1981PontiacFirebirdEsprit
1970-1981PontiacFirebirdFormula
1970-1981PontiacFirebirdTrans Am
