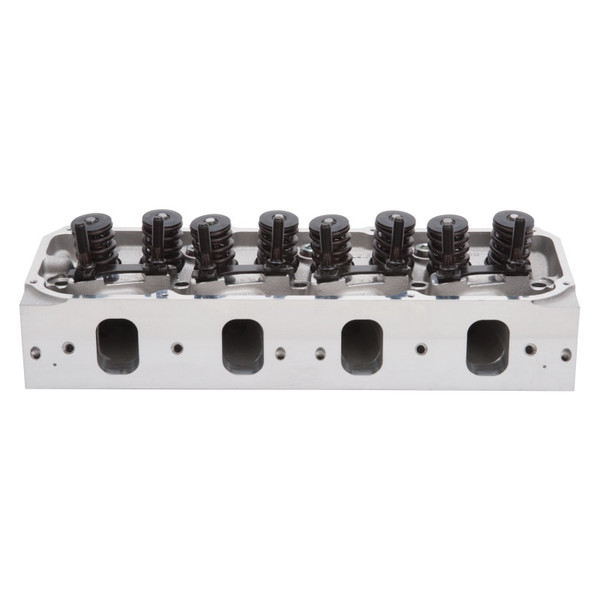

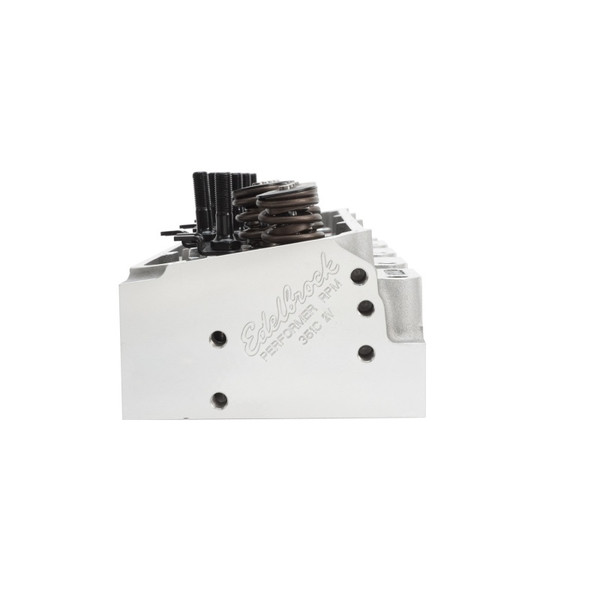

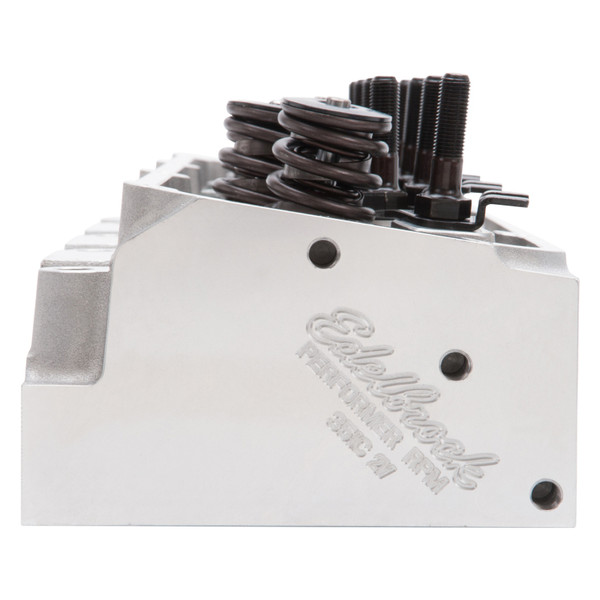

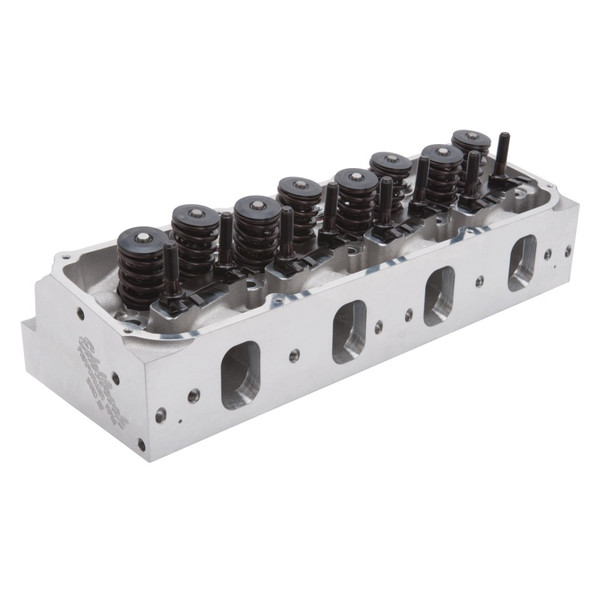

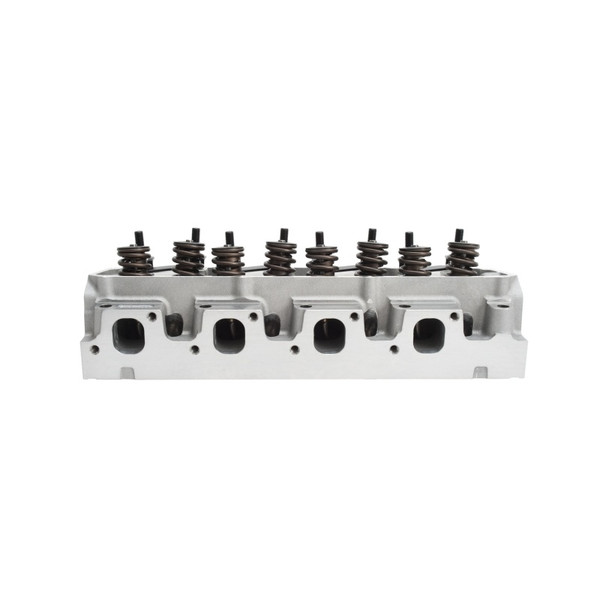

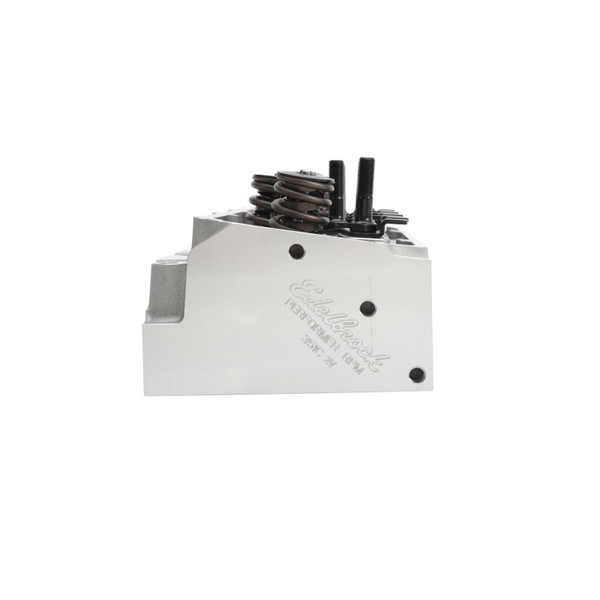

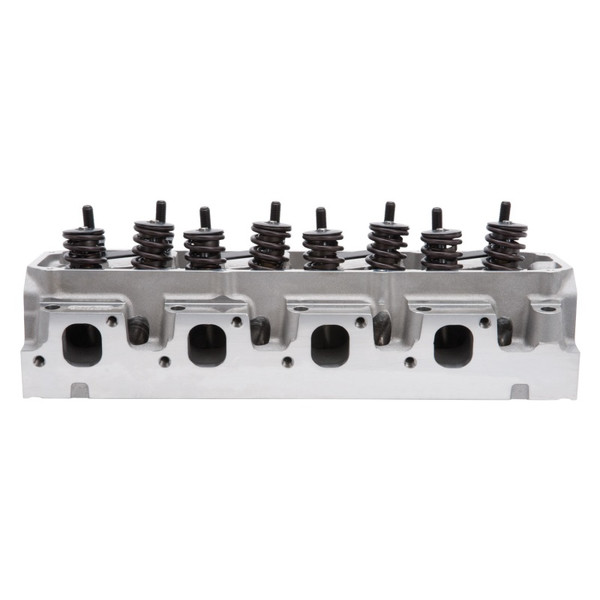

Edelbrock Cylinder Head SB Ford Perfomer RPM 351 Cleveland for Hydraulic Roller Cam Complete (Ea) - 61625

(No reviews yet) Write a Review
$1,293.99
SKU:
EDE61625
UPC:
85347616251
Availability:
This part is back-ordered therefore shipping time will vary.
MPN:
61625
Special Order:
Y
Core Price:
0
CARB:
This product is not CARB Legal and not for sale in California
Verify fitment with your vehicle
GO
5 customers are viewing this product
Edelbrock Cylinder Head SB Ford Perfomer RPM 351 Cleveland for Hydraulic Roller Cam Complete (Ea) - 61625

Edelbrock Cylinder Head SB Ford Perfomer RPM 351 Cleveland for Hydraulic Roller Cam Complete (Ea) - 61625

$1,293.99
Cylinder Head Specifications: Combustion chamber volume: 60cc, Intake runner volume: 190cc, Exhaust runner volume: 90cc, Intake valve diameter: 2.05in, Exhaust valve diameter: 1.60in, Valve stem diameter: 11/32in, Valve guides: Manganese bronze, Deck thickness: 5/8in, Valve spring diameter: 1.55in, Valve spring maximum lift: .580in, Rocker stud: 7/16in, Guideplate: Hardended steel, Pushrod diameter: 5/16in, Valve angle: Same as OE 9.5, Exhaust port location: Stock, Spark plug fitment: 14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Match with Edelbrock head gasket sets on pages 84-85. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs 14mm x 3/4in reach with flat gasket seat (Champion RC12YC). Deck thickness: 5/8in, rocker stud diameter: 7/16in, pushrod diameter: 5/16in (width of slot in guide plate). Valve sizes are recommended, not maximum. IMPORTANT NOTE: G?Compact chargeGg kidney shape combustion chamber design. Intake and exhaust ports based on 2V design. Optimized spark plug location provides improved header clearance. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Deck thickness: 5/8in, rocker stud diameter: 7/16in, pushrod diameter: 5/16in (width of slot in guide plate). Valve sizes are recommended, not maximum. Performer RPM Clevor cylinder heads with 7/16in bolts on 289/302 engines, use Edelbrock stepped head bolt washer kit No.9680.
