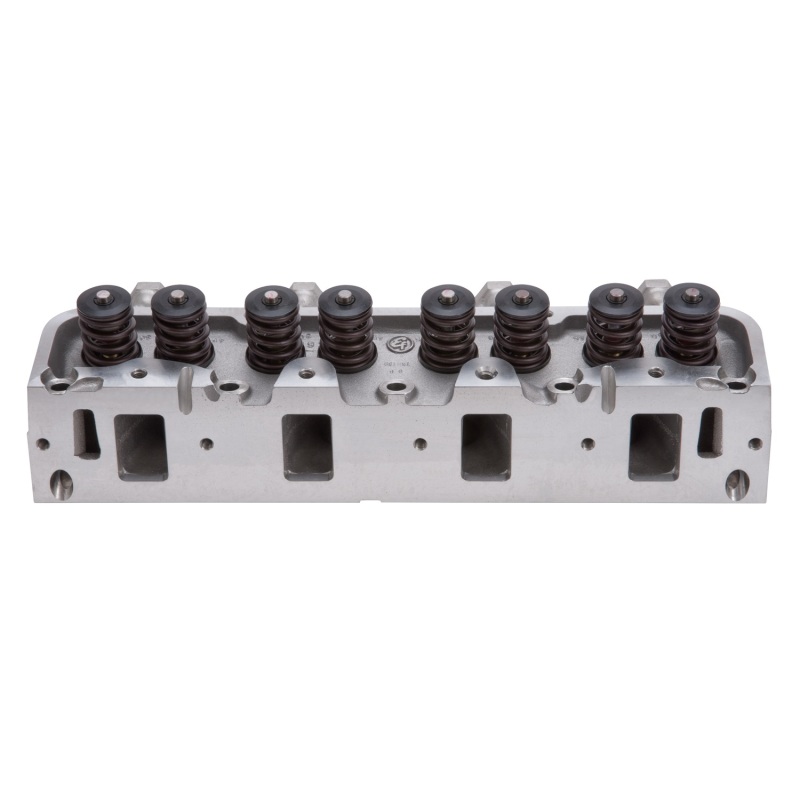

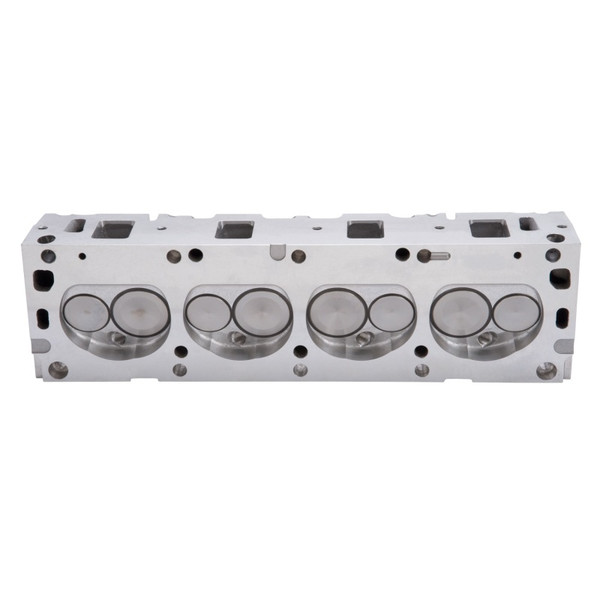

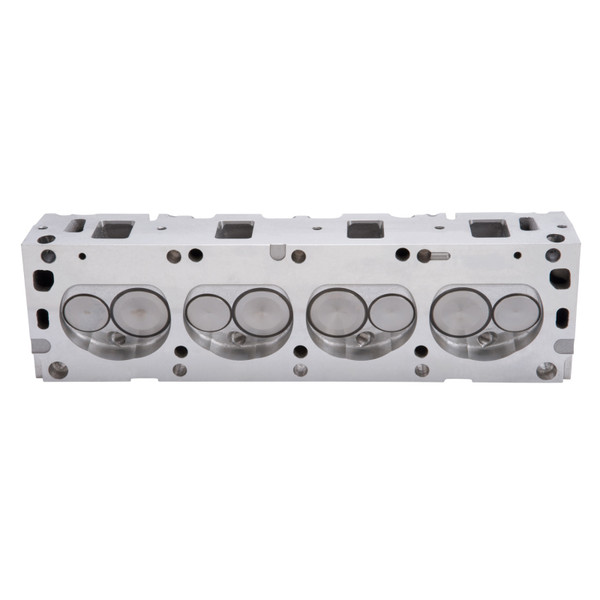

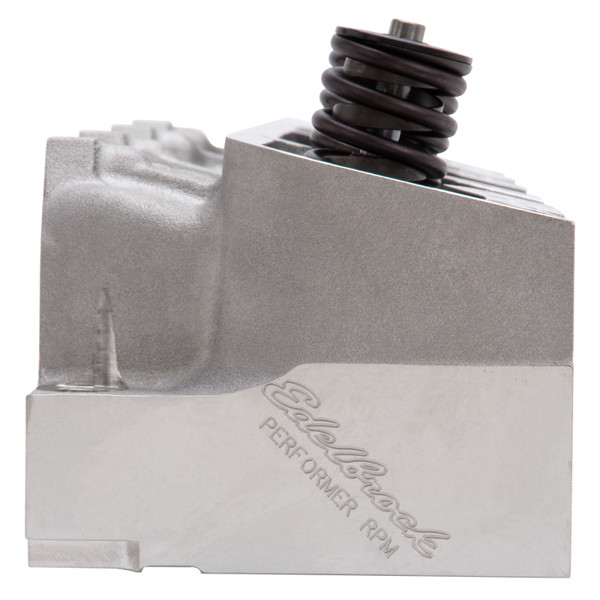

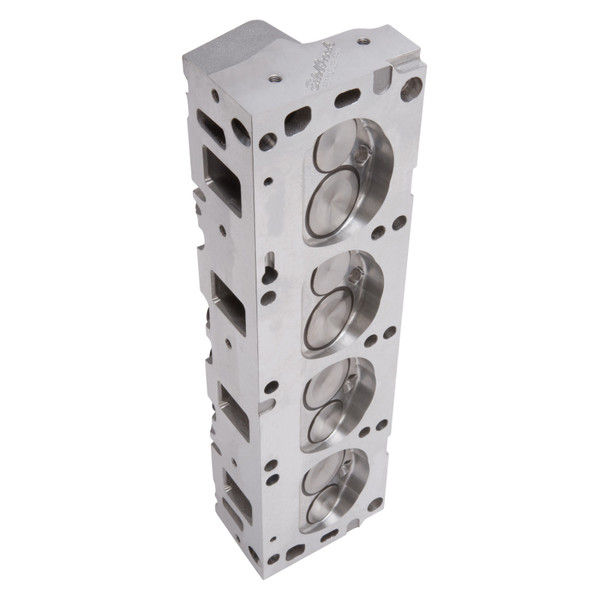

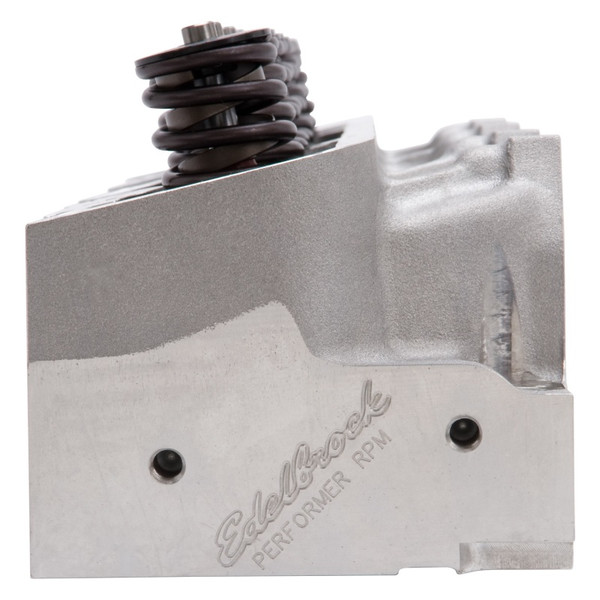

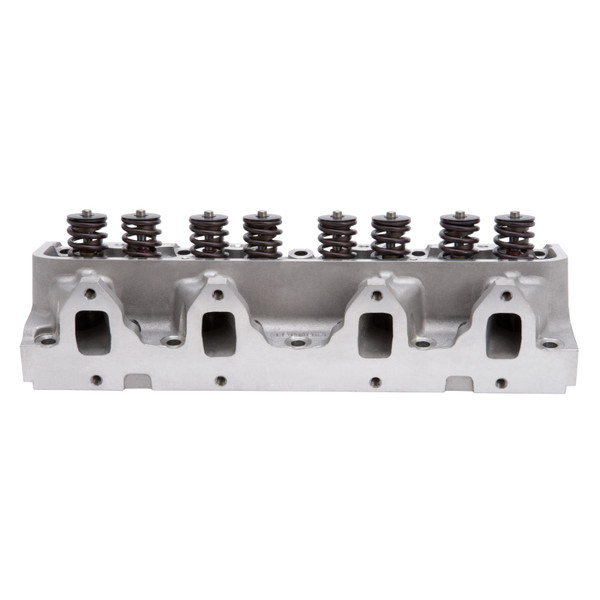

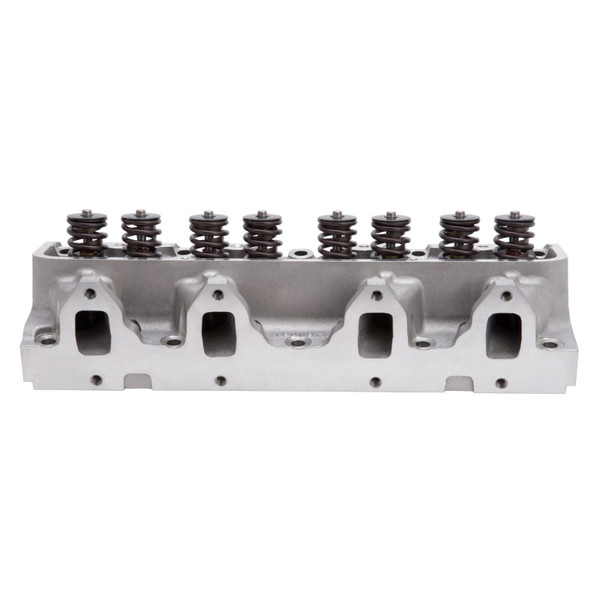

Edelbrock Single Ford FE 76cc 427 Head Comp - 60079

(No reviews yet) Write a Review
$952.99
SKU:
EDE60079
UPC:
85347600793
Availability:
Special order
MPN:
60079
Special Order:
Y
Core Price:
0
CARB:
This product is not CARB Legal and not for sale in California
5 customers are viewing this product
Edelbrock Single Ford FE 76cc 427 Head Comp - 60079

Edelbrock Single Ford FE 76cc 427 Head Comp - 60079

$952.99
Cylinder Head Specifications: Combustion chamber volume: 72cc / 76cc; Intake runner volume: 170cc; Exhaust runner volume: 125cc; Intake valve diameter: 2.09"; Exhaust valve diameter: 1.66"; Valve stem diameter: 3/8"; Valve guides: Manganese bronze; Deck thickness: 5/8"; Valve spring diameter: 1.55"; Valve spring maximum lift: .600"; Pushrod diameter: 3/8"; Valve angle: 13°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Match with Edelbrock head gasket sets. 76cc heads have vertical bolt pattern only, 390 GT exhaust will not fit. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Deck thickness: 5/8". IMPORTANT NOTES: Direct bolt-on heads for 1961-76 390-427-428 Fords. 428 Cobra Jet-sized valves promote excellent flow for streetable power. #60089 can be machined to accept 2.19" intake and 1.73" exhaust valves. Rocker shaft stud kit #6009 provides better rocker shaft retention and is highly recommended for use with Edelbrock FE heads. It eliminates wearing of the threads and the possibility of bottoming the rocker shaft bolts in the head. Intake and exhaust CC values are projected if using Edelbrock valves, and equivalent valve job and bowl blend. Edelbrock FE heads do not have the bolt pattern to accommodate the stock GT 390 exhaust manifolds. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Replacement valve part numbers are for sets of 8. Deck thickness, 5/8". #6009 rocker shaft stud kit recommended.

This Part Fits:

YearMakeModelSubmodel
1963Ford300Base
1963-1968FordCountry SedanBase
1963-1968FordCountry SquireBase
1964-1968FordCustomBase
1965-1968FordCustom 500Base
1965-1967,1969FordFairlane500
1966-1967FordFairlane500XL
1964-1967,1969FordFairlaneBase
1963FordFord 300Base
1963-1967FordGalaxieBase
1965-1968FordGalaxie 500Base
1963-1964FordGalaxie 500Sunliner
1963-1964FordGalaxie 500Victoria
1965-1968FordGalaxie 500XL
1964-1965FordGT40Base
1966-1967,1969FordGT40MK III
1965-1968FordLTDBase
1963-1968FordRanch WagonBase
1963-1967FordThunderbirdBase
1967MercuryBroughamBase
1964-1967MercuryCalienteBase
1966-1967MercuryCapriBase
1963-1967MercuryColony ParkBase
1964-1969MercuryCometBase
1963-1967MercuryCommuterBase
1968MercuryCougarBase
1968MercuryCougarXR-7
1964-1969MercuryCycloneBase
1969MercuryCycloneCJ
1969MercuryCycloneSpoiler
1963-1967MercuryMarauderBase
1967MercuryMarquisBase
1964-1967MercuryMontclairBase
1968-1969MercuryMontegoBase
1968-1969MercuryMontegoMX
1963-1967MercuryMontereyBase
1966-1967MercuryMontereyS-55
1964-1967MercuryPark LaneBase
1964-1967MercuryVillagerBase
1966-1967MercuryVoyagerBase
