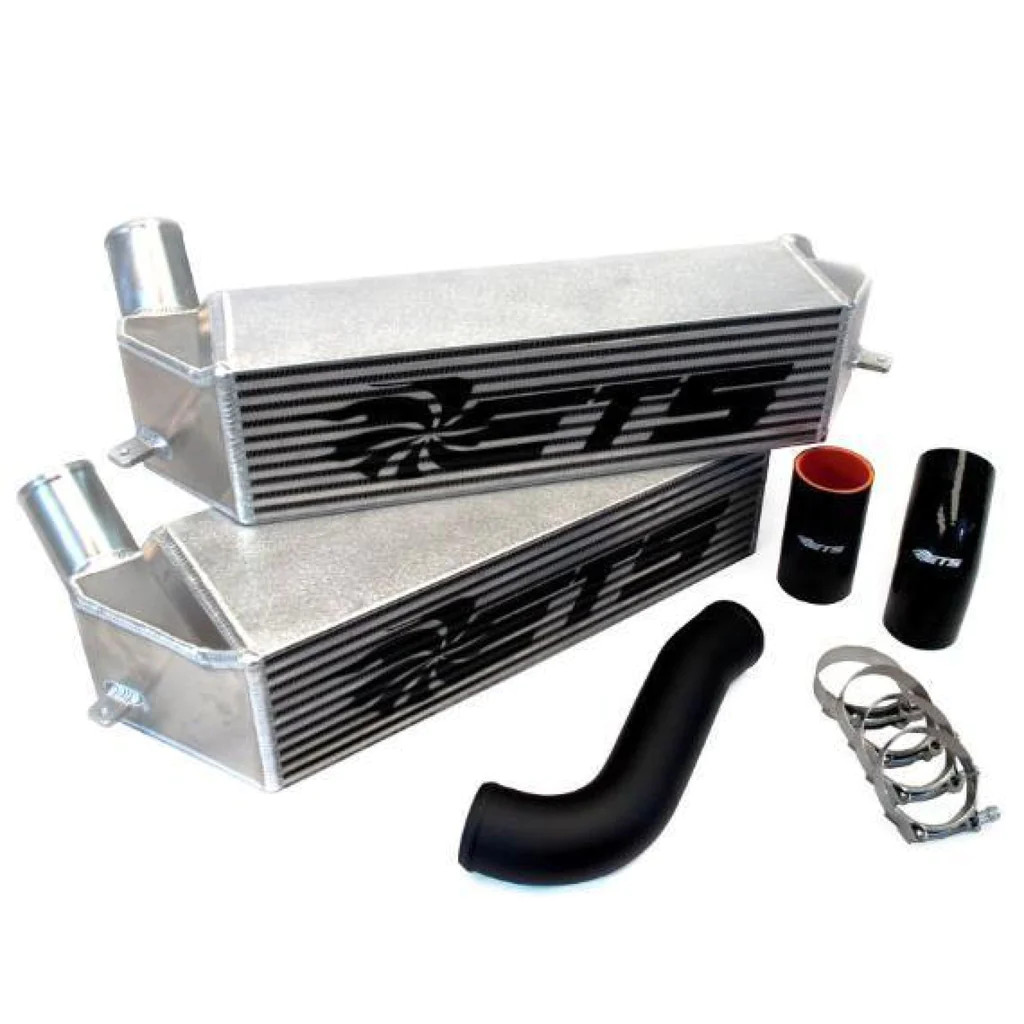

The ETS intercooler Kit Features
Note how the inlet and outlets are staggered. The inlet is at the top of the cooler and the outlet is at the bottom. This design will force the air to flow through the whole cooler, not just straight across as if both inlet and outlets were on the top.
Also note the radiator shroud tabs at the bottom of the cooler.
Analysis of Stock Intercooler,
Base Test on a stage 1 vehicle at 12psi shows good power, but a flat spot in the mid range power between 5000-5700rpm is likely due to the rapidly rising outlet temps of the inefficient stock intercooler. Based upon the 100deg mid pull temps, and the 125deg end of pull temp, there is definitely room for improvement over the stock intercooler.
Analysis of ETS Intercooler,
Upon installation of the ETS Intercooler Kit, the car shows a 21.05hp increase and makes 361 peak hp. Outlet temps are only 59deg at mid pull and the temps only rise to 66deg at the end of the run. These temps are signifigantly lower than stock, and it is no surprise that there is a substancial power increase with the intercooler kit installed. Aside from the midrange, we also noticed a slight Increase in top end power as well. This can be attributed in part to the ETS Replacement Charge Pipe which replaces the plastic stock pipe with the 2 restrictve dimples that protrude into the flow area of the pipe.
Through Gears Test
As our test car was an automatic, it was a perfect candidate for a pull through all 4 gears.This is the test that really shows the difference in the ETS Kit vs. the stock intercooler as this test will put a lot of heat into the system in 1st and 2nd gears, which should show the stock units shortcomings as it gets to the high load areas of 3rd and 4th gear.
In this test we see both intercoolers start out at 50deg, by the top of second gear the ETS intercooler is only up to 57deg, while the stock unit is already at 78deg. By the time we get to the top of third gear, the stock cooler has heat soaked, and the charge temps are up to 124, which is way too hot to safely control knock. While the stock intercooler is struggling in 3rd gear, the ETS intercooler is handling the temps with ease, yielding a 69deg charge air temperature. As the car shifts into 4th, the stock intercooler continues to struggle to control the charge air temps, and fails miserably, ending up at 158deg, and even causing timing to be pulled enough that we see two noticeable dips in power.
The ETS intercooler on the other hand, is handling the load of 4th gear without issue, and is returning good power throughout the rest of the pull. Charge temps rise to only 91deg, and we see a max power difference of 25hp. This is a considerable improvement over the stock unit, and is a difference you can really feel in the drivers seat.
30sec. After Pull Analasys,
The above graph illustrates the how well the ETS intercooler deals with heat even after the pull. As illustrated, the ETS intercooler just never gets hot, and even 30seconds after a run through all the gears, the ETS unit is only 69deg while the stock cooler is still over 110deg. These low after pull temps are important because it means that with the ETS intercooler System you ready to make another pull, while the stock cooler is best left to cool down for at least a few minutes.
Stage 1 Race Gas
After all of the design testing was completed, we ran the car on unleaded MS109 racegas and turned up the torque table settings. The outcome was 393whp and 414tq. Not bad for a stage 1 automatic car, with just intake, intercooler, and a tune.
If a product is ordered and not wanted, the UNUSED item can be returned. To return an item, it must be in brand new condition with original packaging. If the item cannot be resold or is a special order or custom made item, we cannot accept a return. Shipping is non refundable in either direction unless approved by JCERacing and if the error was from our side. All items wanting to be return MUST be reported within 30 days of the original invoice date. No items will be returnable after 30 days. All products shipped from the JCERacing warehouse are shipped via FedEx, UPS, USPS, or ISLAND WIDE and require a signature when delivered. Some packages shipped from the manufacturer may or may not require signatures for package release. FedEx, UPS, USPS, and DHL have package pick up locations if you are unable to sign for the package. If the package is returned to JCERacing or manufacturer, you will be responsible for the return shipping costs and pay a small restocking fee if you choose to not have the item reshipped. These fees will be charged to your account on file or will be invoiced to you. .
All products are shipped out from one of the authorized JCERacing shipping locations. JCERacing drop ships some products while some products ship direct from our warehouse. Special arrangements may need to be made for international orders and oversize packages. .
If you receive a damaged product, please do the following: IMMEDIATELY CONTACT US BY EMAIL TO: shipping@jceracing.com Keep the product with its original packaging and box Make a list of the damaged or lost item(s) JCERacing will contact the shipper once we receive the email info above to schedule a pickup if needed. DO NOT send it back to the return address without written approval from JCERacing.Once the product is received back and inspected, a replacement or credit will be issued.
Free Shipping Offers are for Standard Ground Delivery service and are only valid for shipping addresses within the 48 Contiguous United States and Puerto Rico. Truck freight and oversize packages still apply unless otherwise notes and can only be shipped to the lower 48 States & Puerto Rico. Same Day Shipping (on most parts) if you order by 5PM EST on a business day. We ship via UPS Ground, Fed Ex, DHL and/or USPS to all locations in the Continental 48 States & Puerto Rico.u.
The delivery time of your package primarily depends on the shipping carrier and the service level selected. For more info about our shipping policy go to https://jceracing.com/free-shipping/
JCERacing ships packages all over the globe. If you would like to see an estimated cost of shipping an item(s) internationally, simply send an email to shipping@jceracing.com with the desired item(s) you would like t buy and add full name and address to make you a quote.
JCERacing is proud to offer FREE SHIPPING on any order of $99 or more to 48 US States & Puerto Rico
Free Shipping Offers are for Standard Ground Delivery service and are only valid for shipping addresses within the 48 Contiguous United States and Puerto Rico. Truck freight and oversize packages still apply unless otherwise notes and can only be shipped to the lower 48 States & Puerto Rico. Same Day Shipping (on most parts) if you order by 5PM EST on a business day. We ship via UPS Ground, Fed Ex, DHL and/or USPS to all locations in the Continental 48 States & Puerto Rico.
The delivery time of your package primarily depends on the shipping carrier and the service level selected. When selecting the shipping method for your package, please keep in mind that most carriers do not work on weekends or major holidays. When carriers quote shipping days, they are referring to business days. Business days are defined as Monday through Friday, with the exception of holidays observed by the parcel carriers. As a general rule, transit times are as follows:
JCERacing ships packages all over the globe. If you would like to see an estimated cost of shipping an item(s) internationally, simply send an email to shipping@jceracing.com with the desired item(s) you would like t buy and add full name and address to make you a quote. Please remember these quotes do not include any duties, customs charges, or brokerage fees that may accompany your shipment; all importation fees assessed by the shipping carrier, local or national governments are the buyer’s responsibility and will not be paid or reimbursed by JCERacing. By law, JCERacing is required to list all package contents at the actual purchase price. If a package is refused rather than pay any importation fees, JCERacing reserves the right to deduct the cost of the return shipment, including customs clearance charges, from your product refund or abandon the package with no refund when the cost of return shipping is more than the original order. For more information contact us now at 787-902-3192 or send us an email.
Opening a Layaway plan is easy & only requires a few steps and completely online. To initiate a Layaway, simply send us an email with the items you want to sales@jceracing.com just add in subject: Lay Away Plan for Your Name. There's no opening fee required for a Layaway. All you need to do is make a small down-payment of 20% of the total of the order.
Questions? You can ask customer service at 1-787-902-3192 or send us an email to shipping@jceracing.com
ETS
The ETS intercooler Kit Features Full Intercooler Kit- Includes Intercooler, Charge Pipe, Couplers,Clamps Direct Bolt on with absolutely no cutting Replaces Restrictive Stock Piping Max HP Gains...
ETS
The ETS intercooler Kit Features Full Intercooler Kit- Includes Intercooler, Charge Pipe, Couplers,Clamps Direct Bolt on with absolutely no cutting Replaces Restrictive Stock Piping Max HP Gains...
ETS

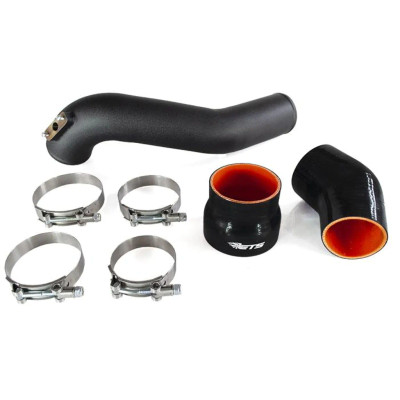

The OEM BMW diverter valve and charge pipe are prone to leaking under normal boost pressures, this results in reduced power and less performance. Our ETS Charge Pipe replaces this flimsy factory part...
